What are the four basic components of a Manual Slack Adjusters?

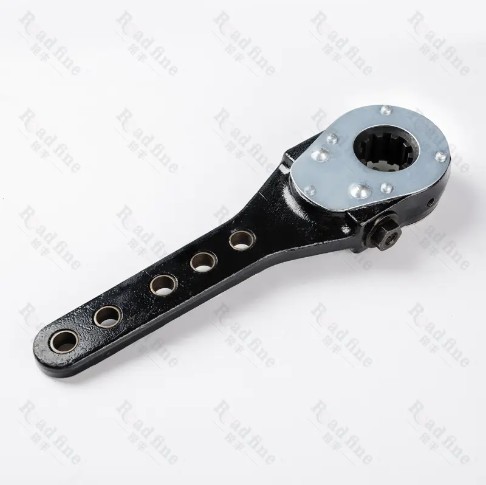

A Manual Slack Adjusters consists of four basic components: the body, the worm, the gear, and the adjustment screw.
The body, as the skeleton of the Manual Slack Adjusters, not only carries all other components, but also ensures the structural integrity and functionality of the entire device. It is usually made of high-strength, corrosion-resistant materials such as high-quality cast iron or lightweight, high-strength aluminum alloy to adapt to harsh working environments and frequent mechanical stresses. The design of the body is carefully calculated and optimized to ensure stable performance when subjected to the huge forces generated during braking. The internal structure is designed with precise guide grooves, bearing seats, and sealing devices to reduce friction, prevent dust and moisture intrusion, and extend the service life of the entire adjustment arm.
The worm is a key transmission element in the Manual Slack Adjusters. Its unique helical tooth design enables it to transmit large axial forces with small torque. This design not only improves transmission efficiency, but also allows users to easily perform manual adjustments. The worm is usually made of wear-resistant, high-strength alloy steel, and is precision machined and heat-treated to ensure its stability and reliability in long-term use. The meshing between the worm and the gear is tight and smooth, reducing noise and vibration and improving driving comfort.
The gear that fits closely with the worm is another important transmission component in the Manual Slack Adjusters. It is usually made of a material that matches the worm to ensure good meshing and wear resistance between the two. The design of the gear takes into account multiple factors such as transmission ratio, tooth profile accuracy and strength requirements to ensure low noise, low vibration and high efficiency while transmitting power. The tooth surface of the gear is specially treated to improve its wear and corrosion resistance, thereby extending the service life of the entire adjustment arm.
The adjustment screw is a key component in the Manual Slack Adjusters that is directly used to adjust the brake clearance. It is usually made of high-strength, corrosion-resistant alloy steel, and is precision machined and heat-treated to ensure its high precision and long-term stability. The thread design of the adjustment screw takes into account the needs of easy adjustment and locking, allowing users to easily adjust the clearance and prevent loosening during vehicle driving. One end of the adjustment screw is usually connected to a component of the brake system (such as a brake shoe or brake lining), and the brake clearance can be accurately adjusted by rotating the adjustment screw to ensure the performance and safety of the brake system. Additionally, some adjustment screws are equipped with a locking device to prevent accidental loosening after adjustment has been completed.
